SolidWorks Rendering – The Art and Science of Design Visualization

Introduction: Bringing Designs to Life Through Visual Fidelity

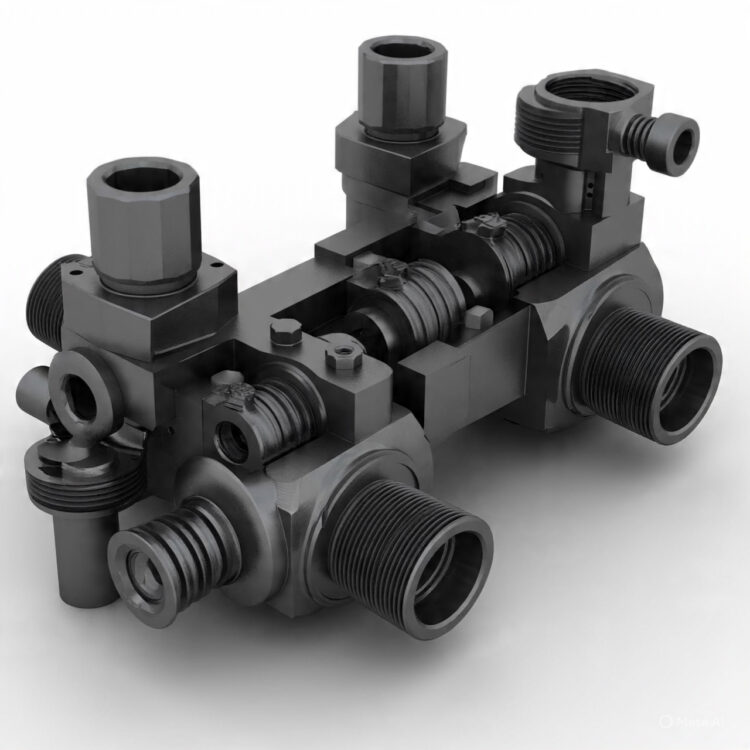

In the dynamic landscape of product development, a meticulously crafted 3D CAD model is just the blueprint. To truly communicate its form, function, and aesthetic appeal, it needs to be seen, experienced, and understood in a compelling visual manner. This is where SolidWorks Rendering steps in – transforming raw 3D data into photorealistic images and animations that look indistinguishable from real-world photographs. It’s the critical bridge between engineering design and effective communication, allowing stakeholders, clients, and marketing teams to visualize the final product long before a physical prototype is ever built.

SolidWorks, renowned for its robust 3D mechanical design capabilities, integrates powerful rendering tools that empower designers and engineers to create stunning visualizations of their models. From basic visual checks using RealView Graphics to high-fidelity output with PhotoView 360 and the dedicated SolidWorks Visualize application, the software offers a spectrum of options to suit varying needs and levels of complexity. This comprehensive article will delve into the significance of rendering, explore the core concepts and tools within SolidWorks’ rendering ecosystem, outline practical workflows, and provide essential tips for achieving professional-grade visualizations that truly bring designs to life.

Why Rendering is Indispensable in Modern Design

The value of high-quality rendering extends far beyond mere aesthetics; it is a strategic asset in contemporary product development:

• Enhanced Communication: A photorealistic image communicates design intent and product appeal far more effectively than technical drawings or wireframe models. It bridges the gap between technical understanding and visual comprehension, making designs accessible to non-technical stakeholders, potential customers, and investors.

• Faster Design Review and Feedback: Instead of waiting for physical prototypes, designers can present realistic renderings to teams for immediate feedback. This accelerates the iteration process, allowing for quicker identification of flaws, aesthetic adjustments, and functional improvements.

• Cost and Time Savings: Eliminating or significantly reducing the need for expensive physical prototypes and professional product photography saves considerable time and financial resources during the development cycle. Design variations can be rendered and compared virtually without physical fabrication.

• Marketing and Sales Tools: High-quality renderings are invaluable for pre-launch marketing campaigns, sales presentations, e-commerce listings, and brochures. They allow companies to generate buzz and gather market interest before production begins.

• Concept Validation: Visualizing a product in its intended environment helps validate design choices, assess ergonomics, and predict how it will integrate into its surroundings.

• Emotional Connection: Realistic visuals evoke a stronger emotional response than abstract representations, helping potential users connect with the product on a deeper level.

• Intellectual Property Protection: While less common, highly detailed renderings can serve as visual evidence of a design’s unique characteristics for patent applications or intellectual property protection.

In essence, rendering transforms a static CAD model into a dynamic, engaging, and persuasive visual narrative, making it an essential component of a successful product launch.

SolidWorks Rendering Ecosystem: PhotoView 360 vs. SolidWorks Visualize

SolidWorks offers two primary solutions for high-quality rendering, catering to different user needs and levels of rendering expertise:

1. PhotoView 360 (Integrated within SolidWorks)

PhotoView 360 is the built-in rendering application tightly integrated within the SolidWorks environment. It leverages the CAD model directly, making it easy for designers to switch between modeling and rendering tasks without exporting files.

• Ease of Use: Being integrated, it uses a familiar interface and direct access to appearances, scenes, and lighting from within the SolidWorks PropertyManager.

• Interactive Preview: Provides a real-time preview window (integrated or separate) that updates as you make changes to appearances, lighting, or camera angles.

• Good Quality Output: Capable of producing high-quality photorealistic images suitable for most design reviews and basic marketing needs.

• Focus on Appearances, Scenes, and Decals: Primarily managed through the SolidWorks “Appearances, Scenes, and Decals” task pane.

PhotoView 360 is an excellent starting point for SolidWorks users who need to generate compelling visuals without investing in a separate, dedicated rendering package.

2. SolidWorks Visualize (Standalone Application)

SolidWorks Visualize is a dedicated, standalone rendering and animation software developed by Dassault Systèmes. While it works seamlessly with SolidWorks files (and other CAD formats), it operates independently of the CAD application, offering a more advanced and streamlined rendering-focused workflow.

• Superior Quality and Speed: Utilizes advanced rendering engines (both CPU and GPU accelerated) to produce extremely high-quality, photorealistic images and animations much faster than PhotoView 360, especially on powerful graphics cards.

• Intuitive User Interface: Designed specifically for rendering, its interface is highly visual and artist-friendly, simplifying complex rendering concepts.

• Focus on Visual Effects: Offers extensive control over materials, lighting (including advanced HDRI editing), camera effects (depth of field, bloom, vignette), and post-processing.

• Advanced Features (Visualize Professional): The Professional version adds powerful capabilities like animation, virtual reality (VR) output, configuration support, render queues, and more sophisticated material and lighting options.

• Direct Import/Update: Maintains a live link to the SolidWorks model, so any changes made in SolidWorks can be quickly updated in Visualize without losing rendering work.

SolidWorks Visualize is ideal for users who prioritize top-tier visual fidelity, speed, and advanced animation capabilities, often used by dedicated visualization specialists or marketing teams.

Fundamental Concepts of Photorealistic Rendering

Regardless of the specific tool used, achieving a realistic render hinges on understanding and effectively manipulating several core elements:

• Appearances/Materials: This is arguably the most critical component. An appearance defines how a surface looks, including:
  • Color: The base hue.
  • Texture/Bump Maps: Simulating surface imperfections like grain, scratches, or bumps without adding complex geometry.
  • Reflectivity: How much light the surface reflects (glossy, matte, metallic).
  • Transparency/Translucency: How light passes through or scatters within the material.
  • Luminosity/Emissive: If the material itself emits light.
  • Roughness/Clarity: How sharp or blurred reflections appear. SolidWorks provides a vast library of pre-defined appearances (plastics, metals, paints, glass, fabrics, etc.), and users can create custom ones.

• Lighting: Realistic lighting is paramount for convincing renders.
  • Environment Lighting (HDRI): High Dynamic Range Imaging (HDRI) maps are 360-degree panoramic images that capture real-world lighting information (color, intensity, direction) and project it onto the scene. They are incredibly effective for realistic ambient lighting, reflections, and shadows.
  • Directional Lights: Simulating sunlight or distant light sources.
  • Spotlights: Concentrated light beams.
  • Point Lights: Emitting light in all directions from a single point.
  • Area Lights: Simulating diffuse light sources like fluorescent panels.
  • Self-Illuminating Surfaces: Parts that glow, like screens or light bulbs.

• Scenes/Backgrounds: This defines the environment around your model.
  • Backplates: A 2D image placed behind the model, acting as a static background.
  • Environments: 3D scenes or HDRI domes that provide both background visuals and realistic lighting.
  • Ground Plane: A flat surface on which the model sits, crucial for realistic shadows and reflections.
  • Floor Reflections: Enabling reflections on the ground plane to enhance realism.

• Cameras: The virtual lens through which your scene is viewed.
  • Perspective: Mimicking how the human eye sees, with vanishing points.
  • Field of View: Controls the “zoom” level and perspective distortion.
  • Depth of Field: Blurs foreground or background elements to draw focus to the subject.
  • Aspect Ratio: The ratio of width to height of the final image.

• Decals: Images (like logos, labels, or graphics) applied directly onto the surfaces of your model, often with transparent backgrounds.

• Render Output Settings:
  • Resolution: The size of the final image (e.g., 1920×1080 for HD). Higher resolution means more detail but longer render times.
  • Image Format: JPEG (compressed), PNG (supports transparency), TIFF (high quality, large file size).
  • Render Quality/Mode: Controls the level of detail, anti-aliasing, and overall realism of the render, directly impacting render time.

PhotoView 360 Workflow: A Step-by-Step Guide

Here’s a typical workflow for creating a render using PhotoView 360 in SolidWorks:

• Enable PhotoView 360: Go to Tools > Add-Ins and check PhotoView 360. This will add a Render Tools tab to the CommandManager.

• Apply Appearances:
  • Open the Appearances, Scenes, and Decals task pane (or Render Tools > Edit Appearance).
  • Drag and drop appearances from the library onto parts, faces, or features.
  • Customize appearances (color, reflection, texture mapping) using the Appearance PropertyManager. Pay attention to mapping types (planar, spherical, cylindrical) for textures.

• Set Up the Scene:
  • From the Appearances, Scenes, and Decals task pane, drag a scene (e.g., a simple white background or a studio environment) onto your model.
  • Access Render Tools > Edit Scene to adjust background images, floor reflections, and lighting presets.

• Adjust Lighting:
  • PhotoView 360 scenes come with default lighting. You can fine-tune it under Render Tools > Options > PhotoView 360 Options > Lighting.
  • Add custom directional, point, or spot lights if needed, though HDRI environments often provide sufficient realistic lighting.

• Set Camera View:
  • Position your model using standard SolidWorks view controls.
  • For more control, right-click on Cameras in the FeatureManager Design Tree and select Add Camera. This allows you to adjust perspective, depth of field, and aspect ratio like a real camera.

• Add Decals (Optional):
  • Go to Render Tools > Decals (or Appearances, Scenes, and Decals task pane).
  • Browse for an image, then click on the face to apply it. Adjust mapping and transparency as needed.

• Preview and Fine-Tune:
  • Click Integrated Preview or Preview Window under the Render Tools tab. This gives you a fast, interactive render that updates as you change settings. Use this to refine appearances, lighting, and camera angle.

• Final Render:
  • When satisfied with the preview, click Final Render.
  • In the PhotoView 360 Options, set the Image Format and Image Size/Aspect Ratio.
  • Choose Best or Good for Render Quality (higher quality means longer render time).
  • Click Render to generate the final image.

SolidWorks Visualize Workflow: A Brief Overview

For those needing more advanced capabilities, SolidWorks Visualize offers a different, streamlined workflow:

• Import Model: Start Visualize, and import your SolidWorks part or assembly file. Visualize maintains a live link, so you can update the model with changes from SolidWorks later.

• Apply Materials (Appearances): Drag and drop materials from the Visualize library onto your model. Visualize’s material library is extensive and offers advanced controls (subsurface scattering, displacement, procedural textures).

• Set Environment and Lighting: Drag an HDRI environment from the Visualize library onto your scene. Use the environment editor to rotate, scale, and adjust the brightness of the HDRI, which drives the primary lighting and reflections. You can also add additional lights (directional, area, point).

• Position Camera: Use the intuitive camera tools to pan, zoom, orbit, and adjust focus (depth of field). You can save multiple camera views.

• Add Backplates/HDRIs: Drag and drop backplates or new HDRIs to change the visual background and overall lighting.

• Render Modes: Toggle between “Fast” (CPU/GPU-accelerated, quick preview) and “Accurate” (higher quality, longer render time) for interactive feedback.

• Render Output: Set resolution, format, and render quality. Use the render queue to batch-render multiple images or animations. Visualize Professional allows for network rendering to distribute the load across multiple computers.

Tips for Achieving Professional and Realistic Renders

Creating truly impactful renders goes beyond just clicking the “Render” button. Here are some pro tips:

• Quality of the CAD Model: The render engine only sees what your CAD model provides. Ensure your model has proper fillets, chamfers, and smooth surface transitions. Jagged edges or poor surface continuity will show up in reflections and shadows.

• High-Quality Appearances/Textures:
  • Use high-resolution texture maps (diffuse, bump, normal, reflection maps).
  • Pay attention to texture mapping: ensure patterns scale correctly and seamlessly across surfaces.
  • Consider real-world material properties: metals have distinct reflections, plastics have varying levels of sheen, and fabrics have intricate weaves.

• Realistic Lighting is Key:
  • Avoid Flat Lighting: Don’t just use a single, strong light. Mimic real-world lighting setups (e.g., three-point lighting: key, fill, back light).
  • Leverage HDRI: High-quality HDRI environments are often the easiest way to achieve realistic global illumination and reflections.
  • Subtle Shadows: Shadows define form. Ensure they are soft and realistic, not harsh and pixelated.

• Understand Reflections: Reflections are crucial for realism. Experiment with different levels of glossiness and roughness for materials. Highly polished surfaces show sharp reflections, while matte surfaces diffuse reflections.

• Camera Angle and Composition:
  • Rule of Thirds: Position your subject off-center for more dynamic compositions.
  • Perspective: Use perspective to add depth and drama. Avoid orthographic views for photorealism.
  • Depth of Field: Use selective focus to draw attention to key areas of your product.

• Background Simplicity: Often, a simple, uncluttered background allows your product to stand out. White studios or subtle environmental HDRIs work well.

• Decals and Imperfections: Adding subtle decals (logos, labels) and minor imperfections (fingerprints, dust, slight smudges – often achieved with procedural textures or subtle bump maps) can significantly enhance realism.

• Post-Processing: Tools like Adobe Photoshop or GIMP can be used for final touches:
  • Color correction and grading.
  • Adding vignettes or subtle lens flares.
  • Adjusting brightness and contrast.
  • Compositing with real-world backgrounds.

• Experiment with Render Settings: Don’t be afraid to adjust quality settings, anti-aliasing, and other parameters to find the optimal balance between render time and visual fidelity for your specific needs.

• Hardware Matters: Rendering is computationally intensive. A powerful CPU and, especially, a dedicated high-end GPU will dramatically reduce render times, particularly with Visualize.

The Broader Impact of Visualization

High-quality rendering fundamentally changes the product development paradigm. It shifts from an iterative process reliant on physical prototypes to a more agile, virtual prototyping approach. Designers can rapidly explore countless aesthetic and functional variations, visualize them instantly, and gather feedback, leading to:

• Improved Product Aesthetics: The ability to see designs realistically allows for more refined aesthetic choices.
• Enhanced Manufacturability: Visualizing potential issues early can inform design changes that simplify manufacturing.
• Faster Decision Making: Clear visuals enable quicker consensus among stakeholders.
• More Confident Launches: Knowing how a product will look and perform before mass production minimizes risks.

Conclusion

SolidWorks rendering, whether through the integrated PhotoView 360 or the powerful standalone SolidWorks Visualize, is an indispensable tool in the modern design process. It elevates 3D CAD models from mere technical blueprints to captivating visual narratives. By mastering the interplay of appearances, lighting, scenes, and camera techniques, designers and engineers can create photorealistic images and animations that not only communicate design intent but also evoke emotion, drive marketing efforts, and accelerate decision-making. In a world where visual appeal is paramount, SolidWorks rendering capabilities empower innovators to effectively showcase their creations, transforming ideas into tangible, compelling visions that resonate with audiences and pave the way for successful product launches.
